06 / Products

Equipment for generation, conversion and storage

Hybrid and off-grid inverters, MPPT controllers, and lithium iron phosphate storage from 2.56 kWh wall modules to 255 kWh outdoor systems.

Product range

Inverters, controllers and storage systems

From single-phase home hybrids to megawatt-hour class outdoor storage, the JUNO POWER range covers generation, conversion and storage across residential, commercial and utility applications.

25 product families

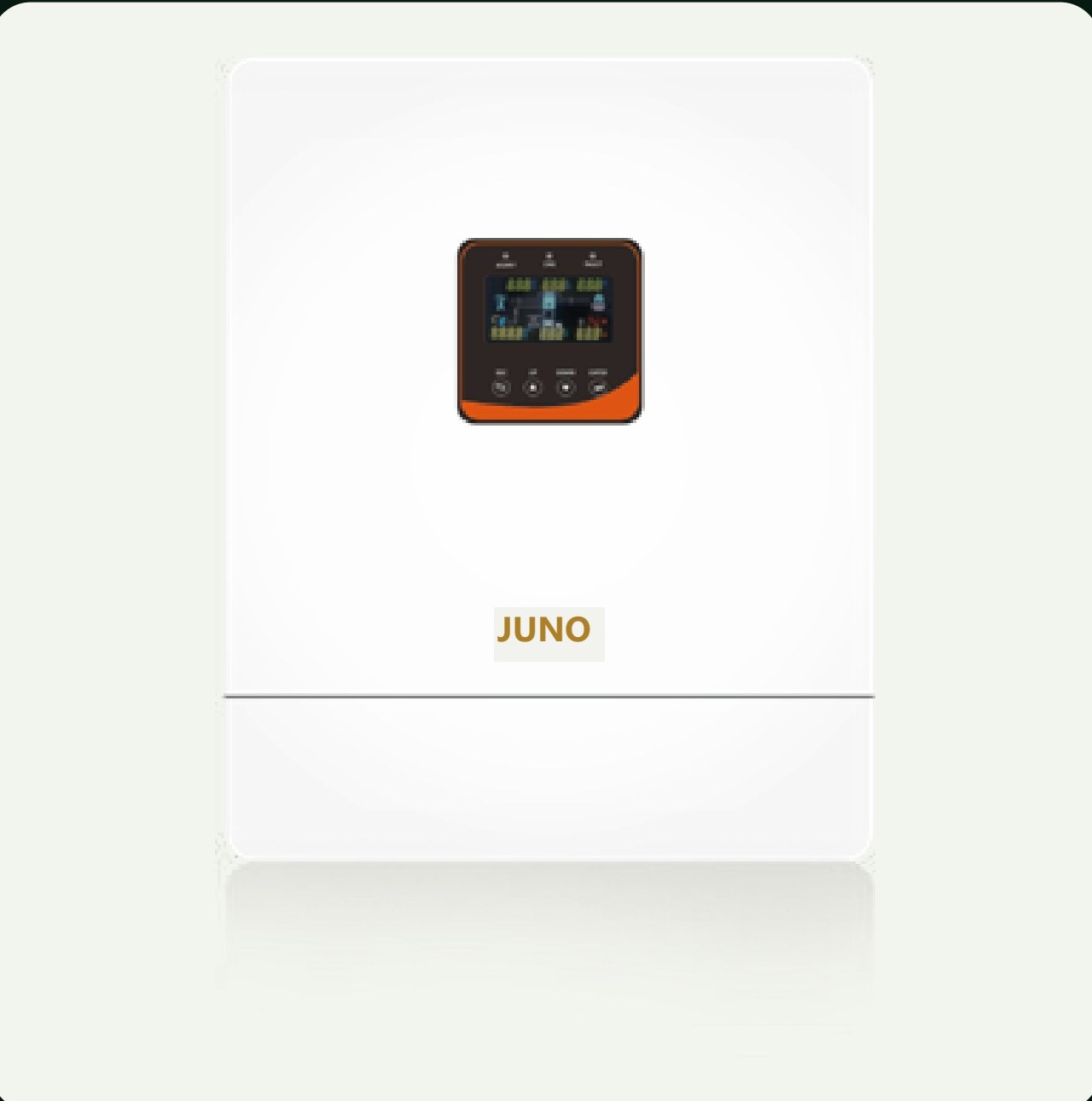

GST single-phase series

Single-phase hybrid inverters

Integrated hybrid inverter combining PV charging, grid charging and pure sine-wave AC output, with DSP control and four charging modes.

3.5–10 kW
48 VDC battery
Up to 9 in parallel

Rated output: 3,500 / 5,500 / 8,000 / 10,000 W
Peak output: 6,000 – 15,000 W
Max. PV array power: 4,000 W – 5,500 + 5,500 W
MPPT range: 120–450 VDC
Rated AC output: 230 VAC (200/208/220/240 configurable), 50/60 Hz
Battery types: Lithium / lead-acid / user-defined
Transfer time: 10 ms typical
Weight: 11–27 kg

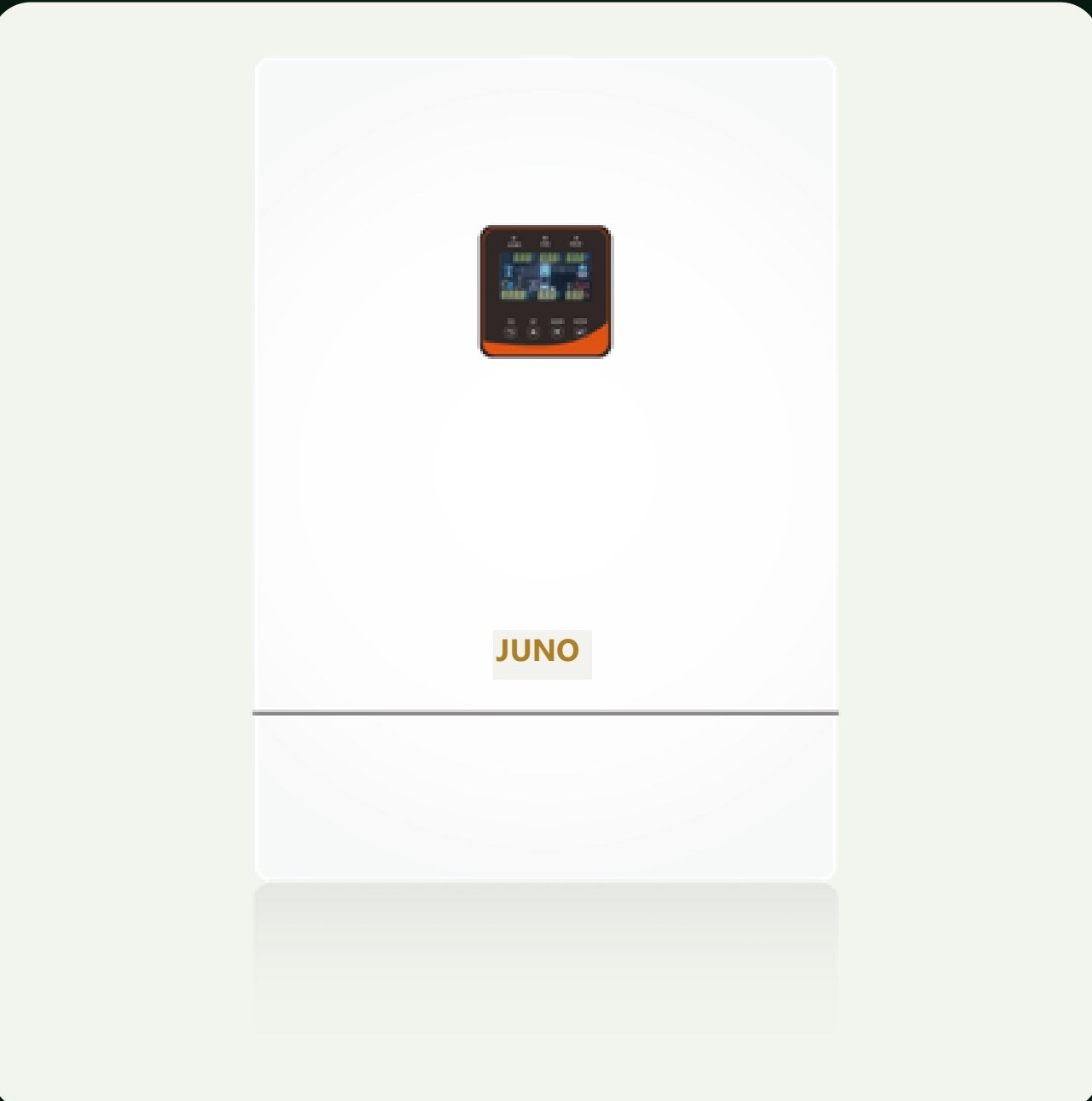

GST three-phase series

Three-phase hybrid inverters

Three-phase hybrid conversion for commercial rooftops and industrial microgrids, with grid-export, zero-export and off-grid operating modes.

Three-phase
Hybrid PV + grid
Parallel capable

Application: Commercial and industrial PV-storage systems
Operating modes: Grid export / zero export / off-grid
Charging modes: Grid priority, PV priority, combined, PV only
Monitoring: PC and mobile app

GST US-format series

US-format hybrid inverters

Split-voltage hybrid inverters configured for North-American style residential and light-commercial installations.

US format
Hybrid
Residential / light commercial

Format: US-market voltage and wiring configuration
Function: PV charging, grid charging, AC output
Protection: Hardware and software protection with fault identification

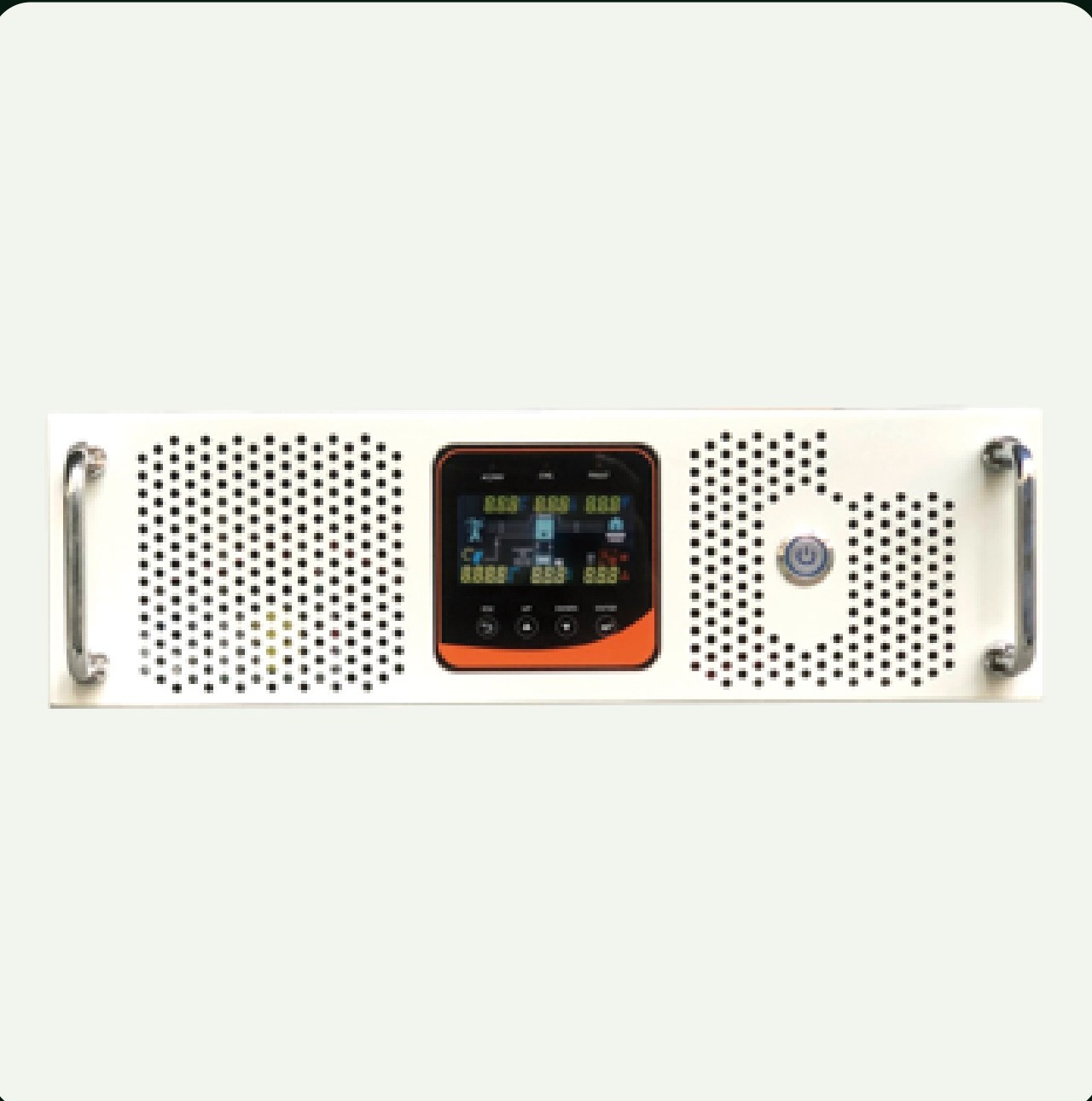

GST rack series

Rack-mounted hybrid inverters

Rack-format hybrid inverters for telecom, data-centre and cabinet-integrated power systems where 19-inch mounting is required.

Rack mount
Telecom / data centre
Hybrid

Mounting: Rack-mounted chassis with front display and handles
Applications: Telecom sites, data centres, integrated cabinets
Control: DSP control with PC / app monitoring

GSA low-frequency single-phase

Single-phase inverter/chargers

Low-frequency transformer-based inverter/chargers built for heavy inductive loads such as pumps, motors and workshop equipment.

6–30 kVA
Low frequency
High surge capability

Output ratings: 6 / 8 kVA (96 V); 6 / 10 / 15 / 20 / 25 / 30 kVA (192–220 V)
Battery platforms: 96 / 192 / 220 VDC
Design: Low-frequency transformer isolation
Loads: Motors, pumps and other inductive loads

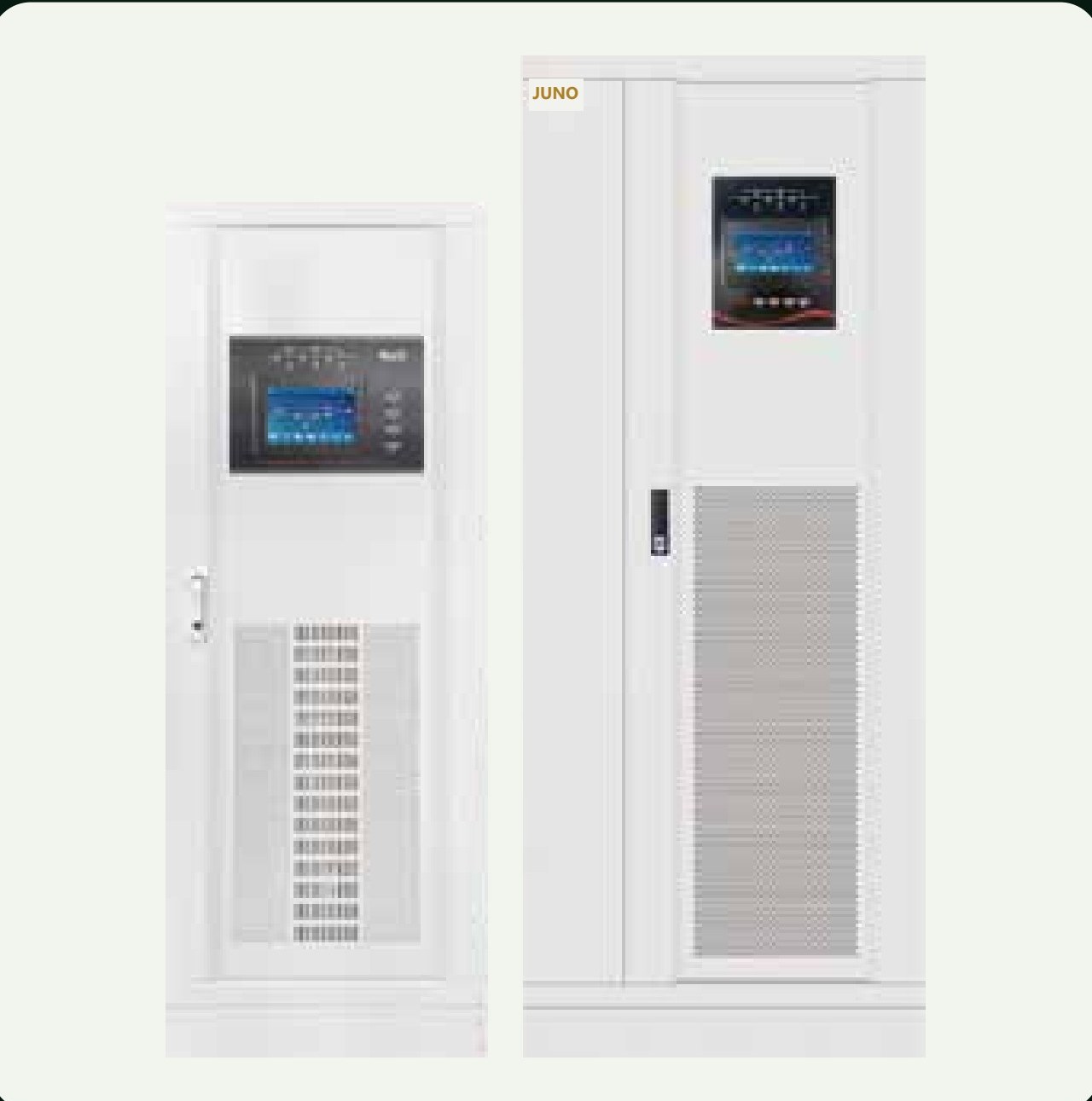

GSA low-frequency three-phase

Three-phase inverter/chargers

Cabinet-mounted three-phase inverter/chargers for industrial off-grid and backup power up to 60 kVA.

10–60 kVA
Three-phase
Cabinet

Output ratings: 10 / 20 / 30 / 40 / 50 / 60 kVA
Dimensions: 10–30 kVA: 600 × 600 × 1600 mm; 40–60 kVA: 600 × 800 × 2000 mm
Design: Low-frequency isolated topology

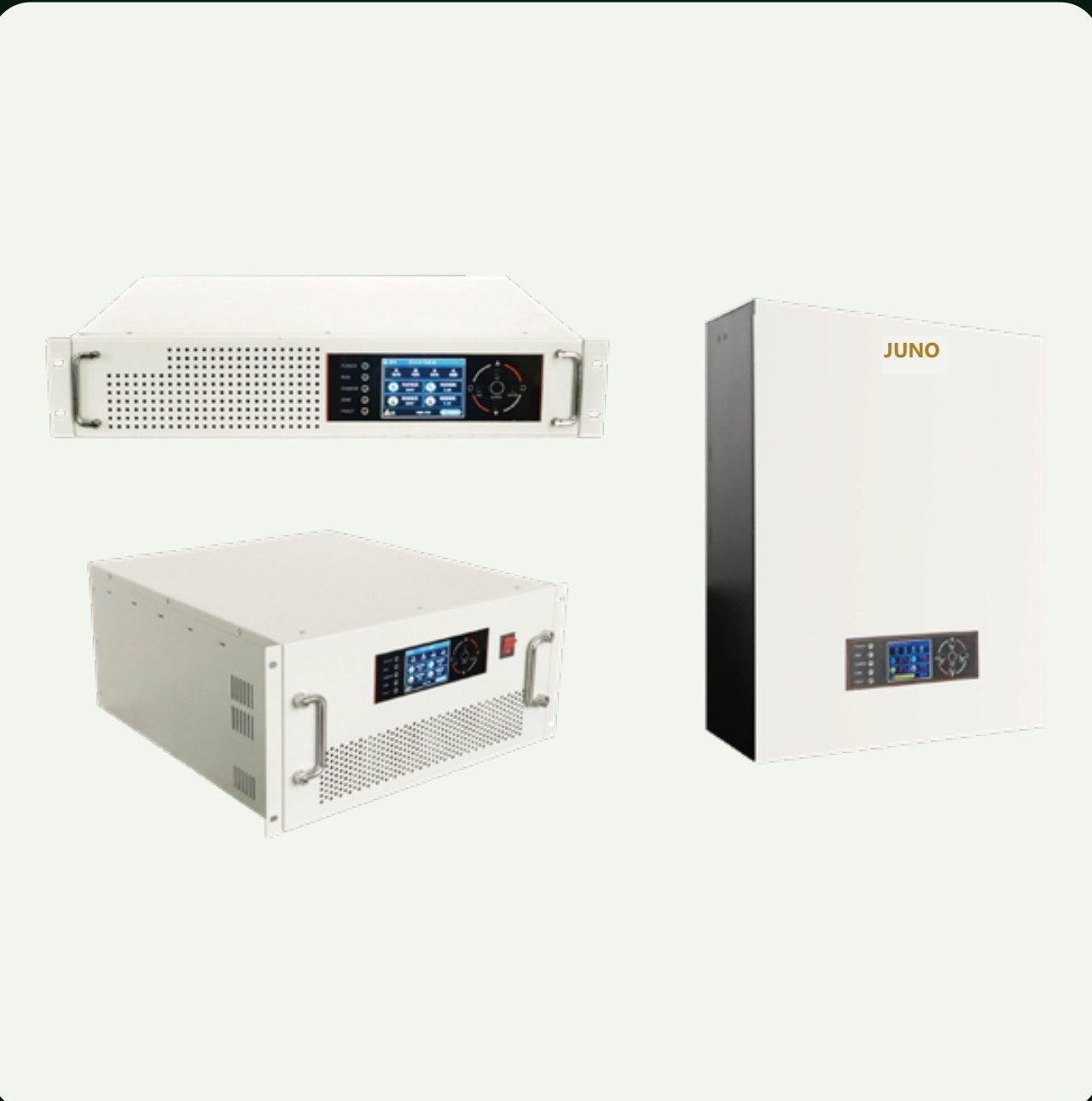

GSM low-voltage series

Low-voltage MPPT controllers

MPPT solar charge controllers for low-voltage battery banks in off-grid, telecom and rural electrification systems.

MPPT
Low-voltage battery
Off-grid

Function: Maximum power point tracking solar charging
Battery support: Lithium and lead-acid banks
Applications: Off-grid homes, telecom, rural power

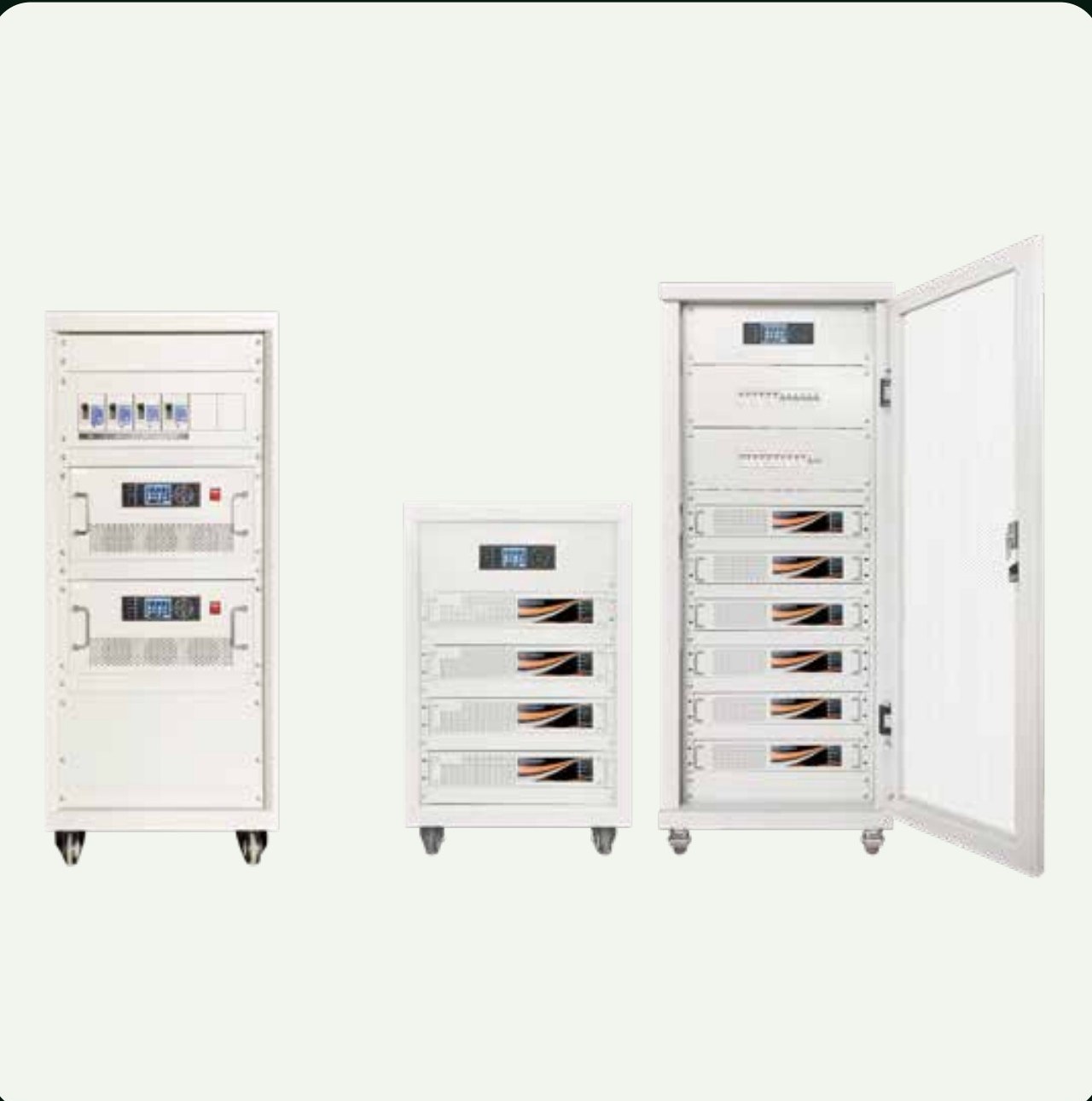

GSM high-voltage series

High-voltage MPPT controllers

High-voltage MPPT controllers for larger arrays and high-voltage battery platforms in commercial off-grid systems.

MPPT
High-voltage battery
Commercial

Function: High-voltage MPPT charging
Protection: Installation, charging and fault protection features
Applications: Commercial off-grid and microgrid systems

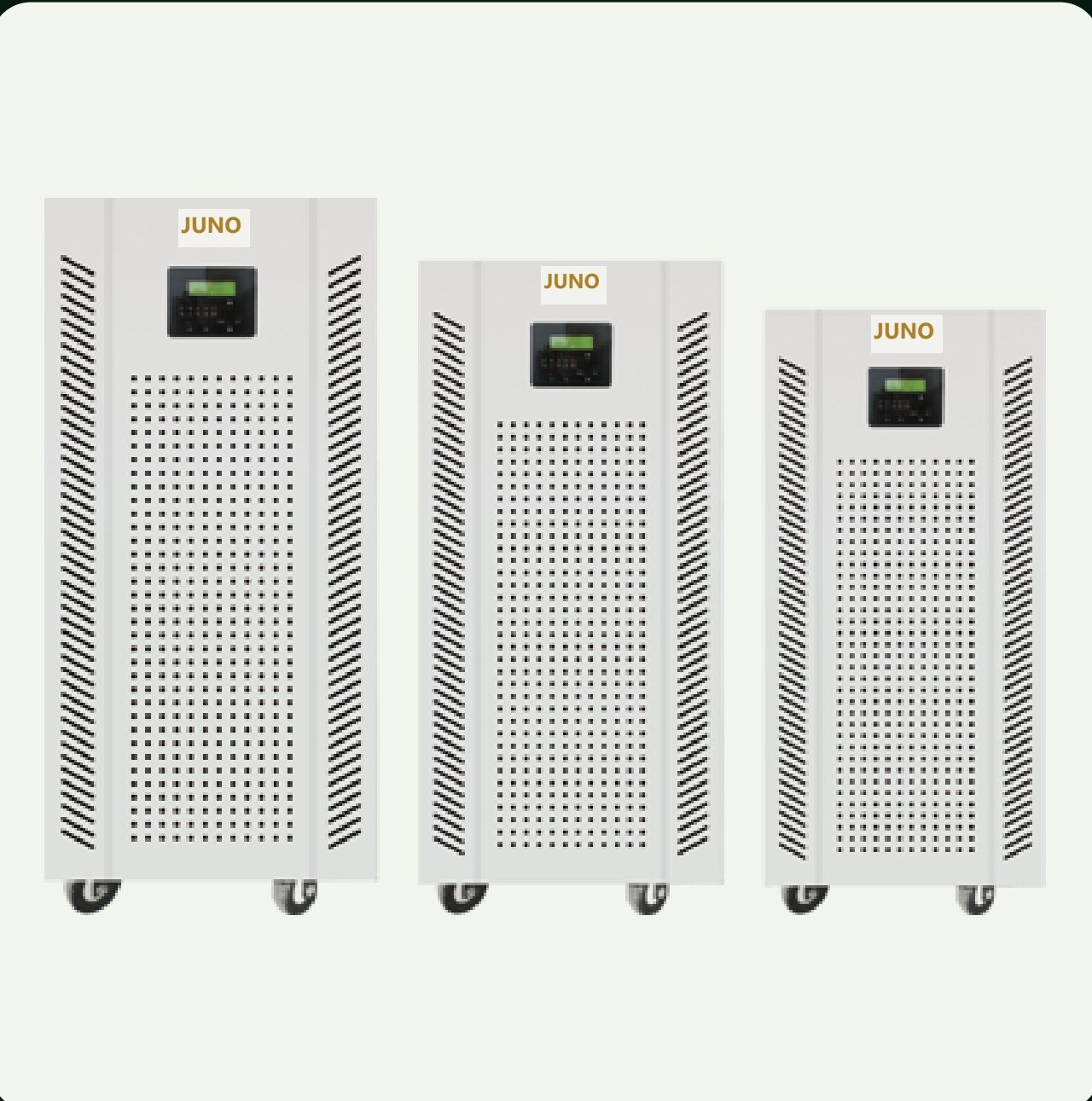

GSI single-phase series

Single-phase off-grid inverters

Pure off-grid single-phase inverters for standalone power supply where no utility connection is available.

6–30 kVA
Off-grid
Single-phase

Output ratings: 6 / 8 kVA (96 V); 6 / 10 / 15 / 20 / 25 / 30 kVA (220 V)
Output: Pure sine wave
Applications: Islands, mountain sites, remote facilities

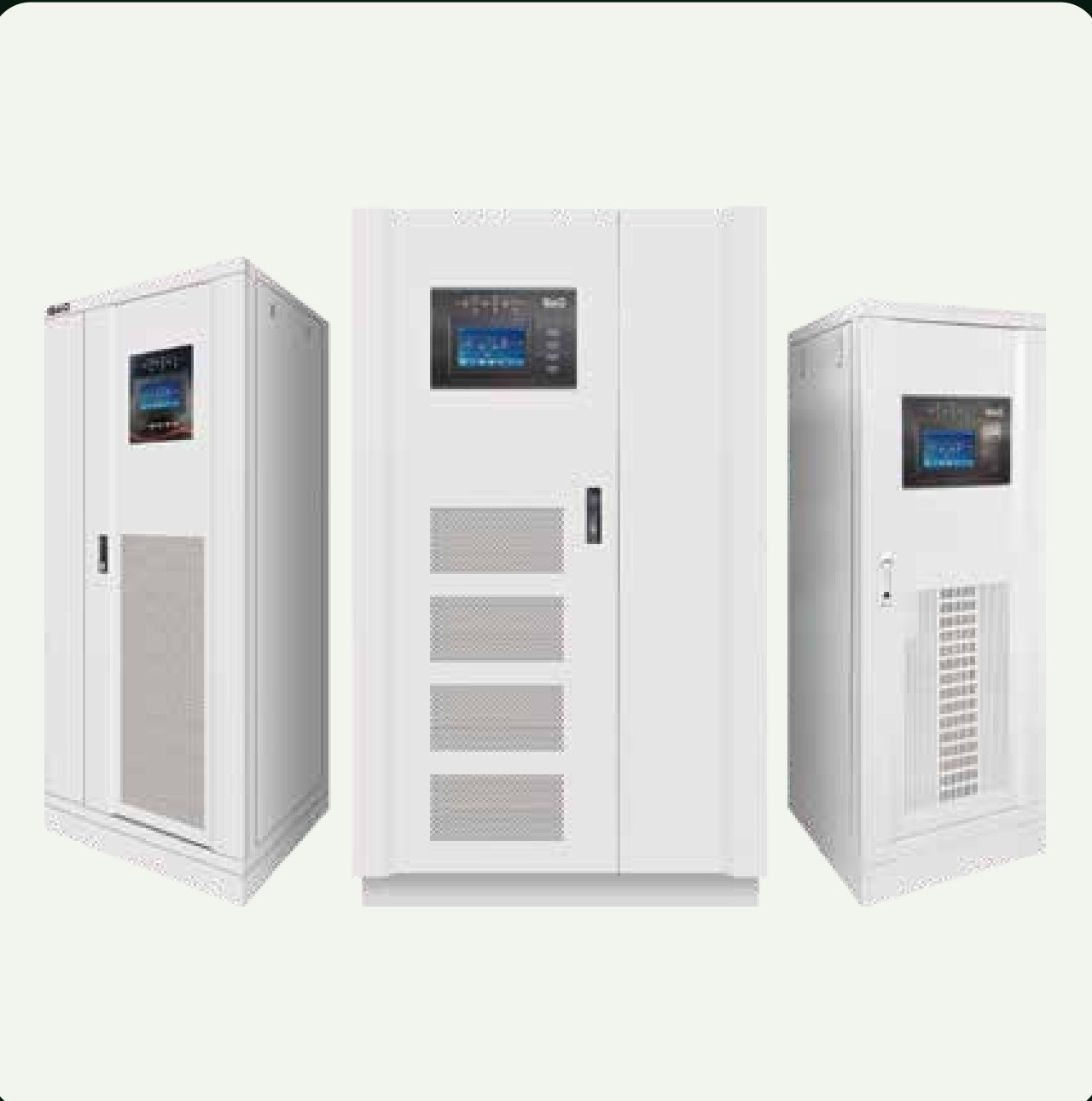

GSI three-phase series

Three-phase off-grid inverters

Three-phase off-grid inverters for industrial sites, mining camps and standalone microgrids.

Three-phase
Off-grid
Industrial

Configuration: Three-phase standalone output
Applications: Industrial parks, camps, isolated microgrids

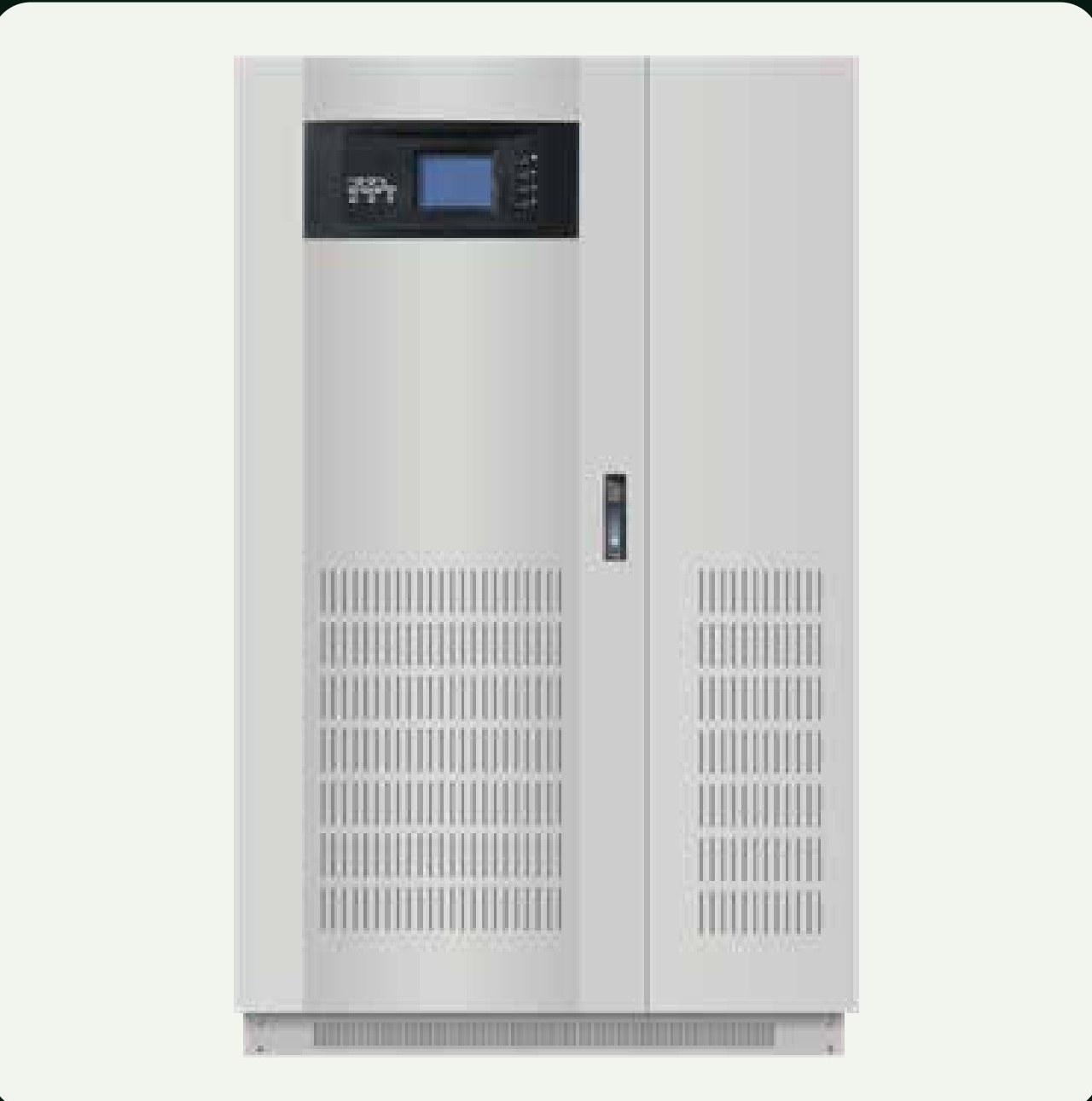

GSI split-phase series

Split-phase off-grid inverters

Split-phase off-grid inverters supplying dual-voltage loads in residential and light-commercial installations.

Split-phase
Off-grid
Dual voltage

Configuration: Split-phase AC output
Applications: Residential and light commercial off-grid supply

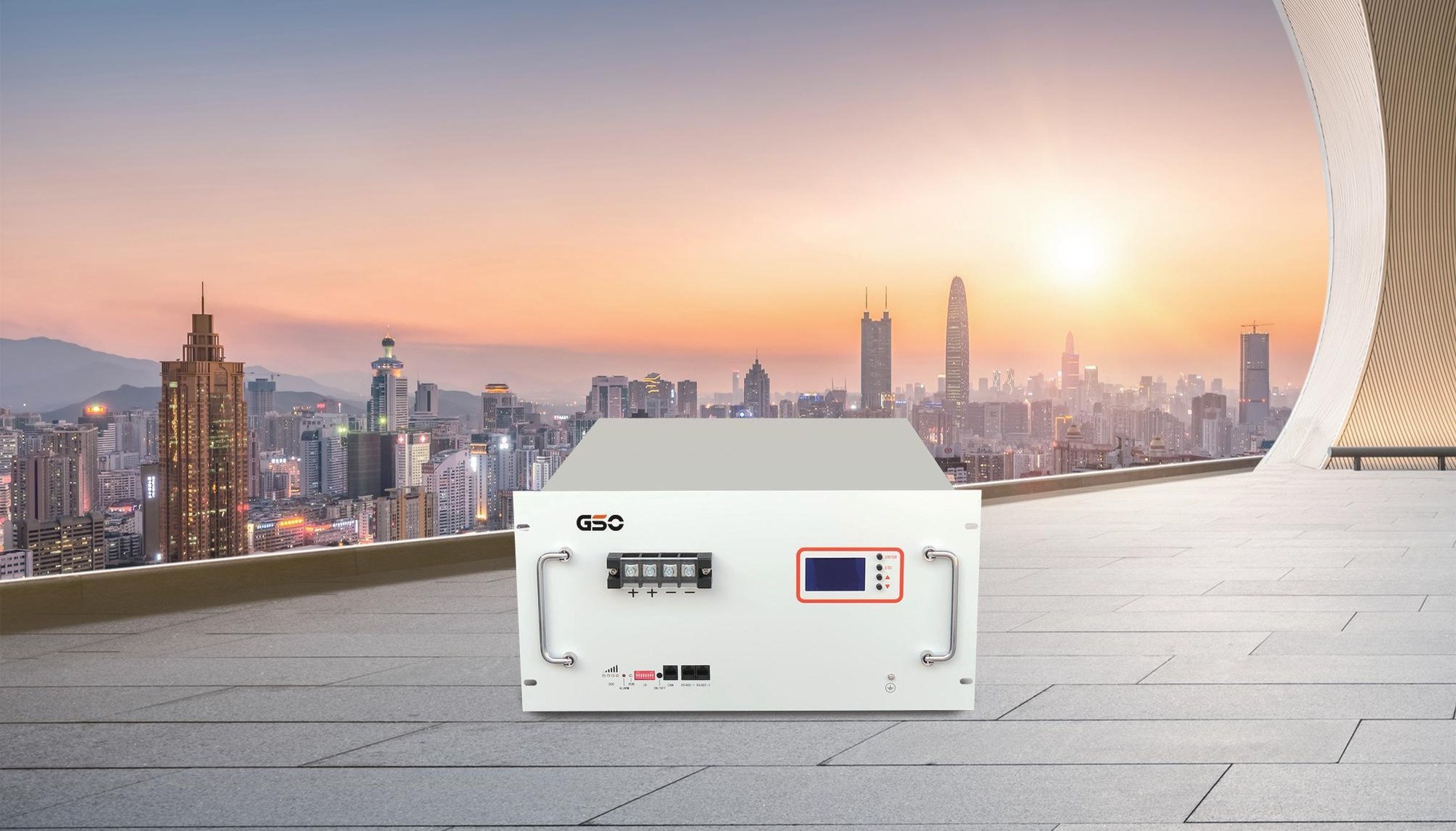

GBP-R series

Rack-mounted LFP batteries

Lithium iron phosphate rack batteries with an advanced BMS, used as standalone DC supply or as building blocks for larger systems.

2.56–16.1 kWh
25.6 / 48 / 51.2 V
5,000+ cycles

Nominal energy: 2.56 – 16.1 kWh
Nominal voltage: 25.6 / 48 / 51.2 V
Capacity: 100 / 200 / 280 Ah cells
Charge / discharge: 0.5C standard, 1C customisable on selected models
Dimensions: 689 × 495 × 162 mm to 904 × 465 × 252 mm
Weight: 28 – 134 kg
Expansion: Parallel with automatic addressing, no DIP switches

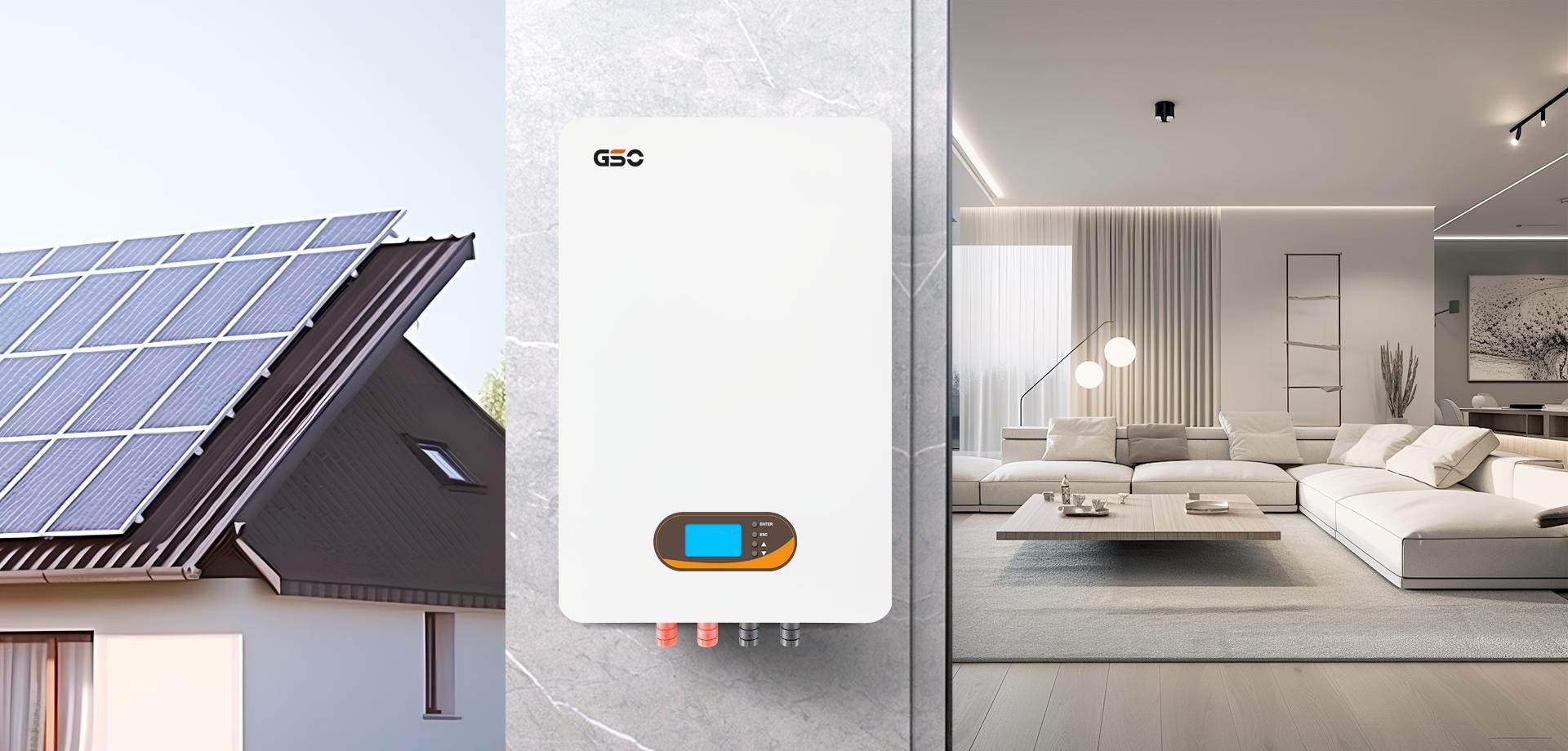

GBP-W series

Wall-mounted LFP batteries

Wall-mounted home battery modules with integrated BMS and inverter communication selectable from the display.

2.56–10.24 kWh
10+ year design life
5,000+ cycles

Nominal energy: 2.56 / 4.8 / 5.12 / 9.6 / 10.24 kWh
Chemistry: Lithium iron phosphate
Design life: 10+ years
Cycle life: 5,000+ cycles
Installation: Wall mounted, residential

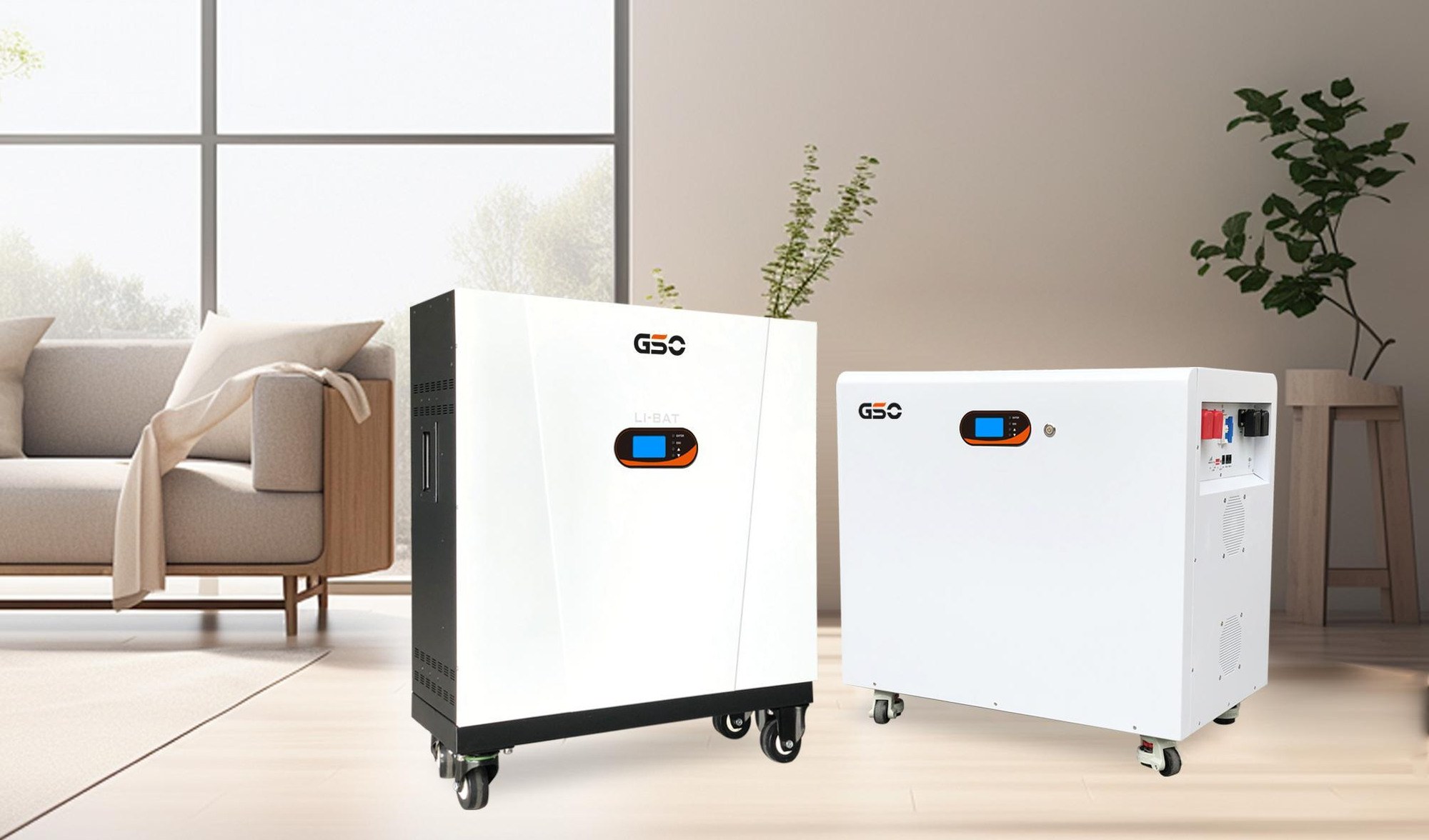

GBP-L series

Wheeled LFP batteries

Mobile wheeled battery units for relocatable backup power and temporary site supply.

Mobile
LFP
Plug-and-use

Format: Wheeled floor unit
Chemistry: Lithium iron phosphate with BMS
Applications: Temporary sites, events, relocatable backup

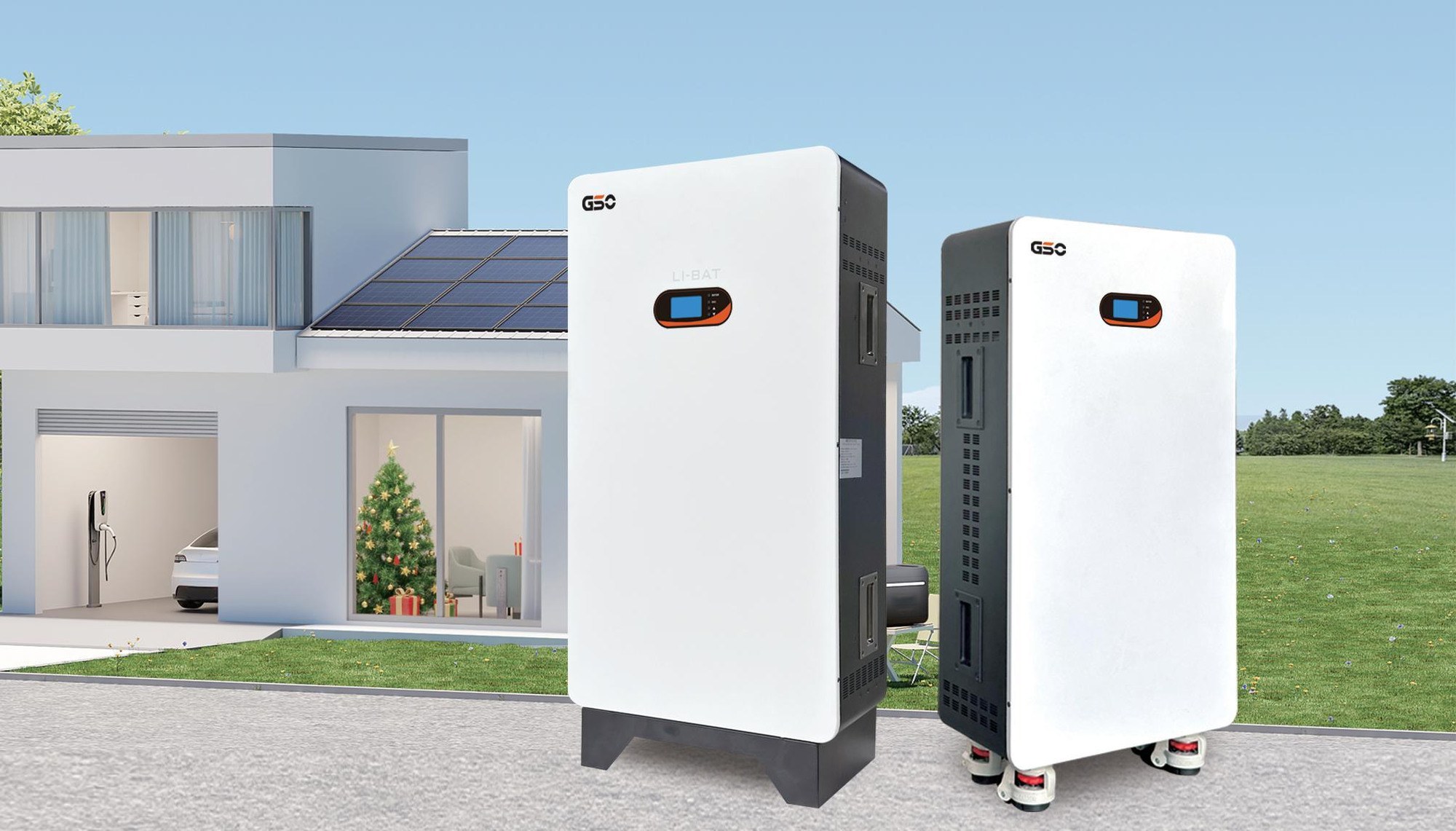

GBP-H/L series

Floor-standing & wheeled batteries

Larger floor-standing battery units for homes and small businesses needing extended autonomy.

Floor standing
Extended capacity
LFP

Format: Floor-standing and wheeled variants
Chemistry: Lithium iron phosphate with integrated BMS
Applications: Residential and small commercial backup

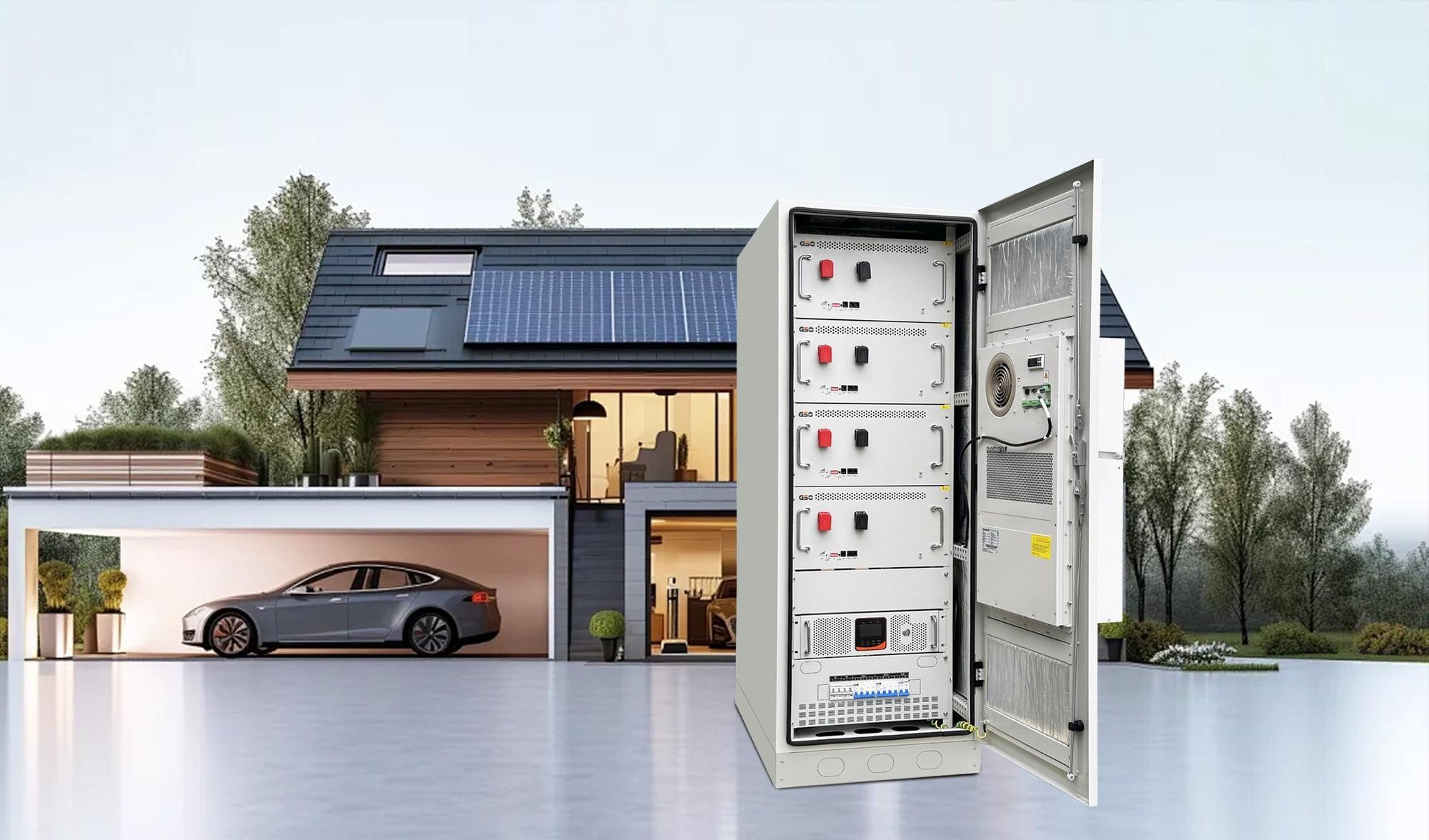

BOC series

Low-voltage outdoor battery cabinets

Weather-protected outdoor cabinets housing low-voltage battery packs for telecom and commercial backup.

15–96 kWh
Cabinet IP54
Packs IP20

Cabinet platforms: 15 – 96 kWh
Pack energy: 4.8 / 5.12 / 9.6 / 10.24 / 13.44 / 14.33 / 15.1 / 16.1 kWh
Ingress protection: Cabinet IP54, battery packs IP20
Applications: Telecom, commercial backup, outdoor sites

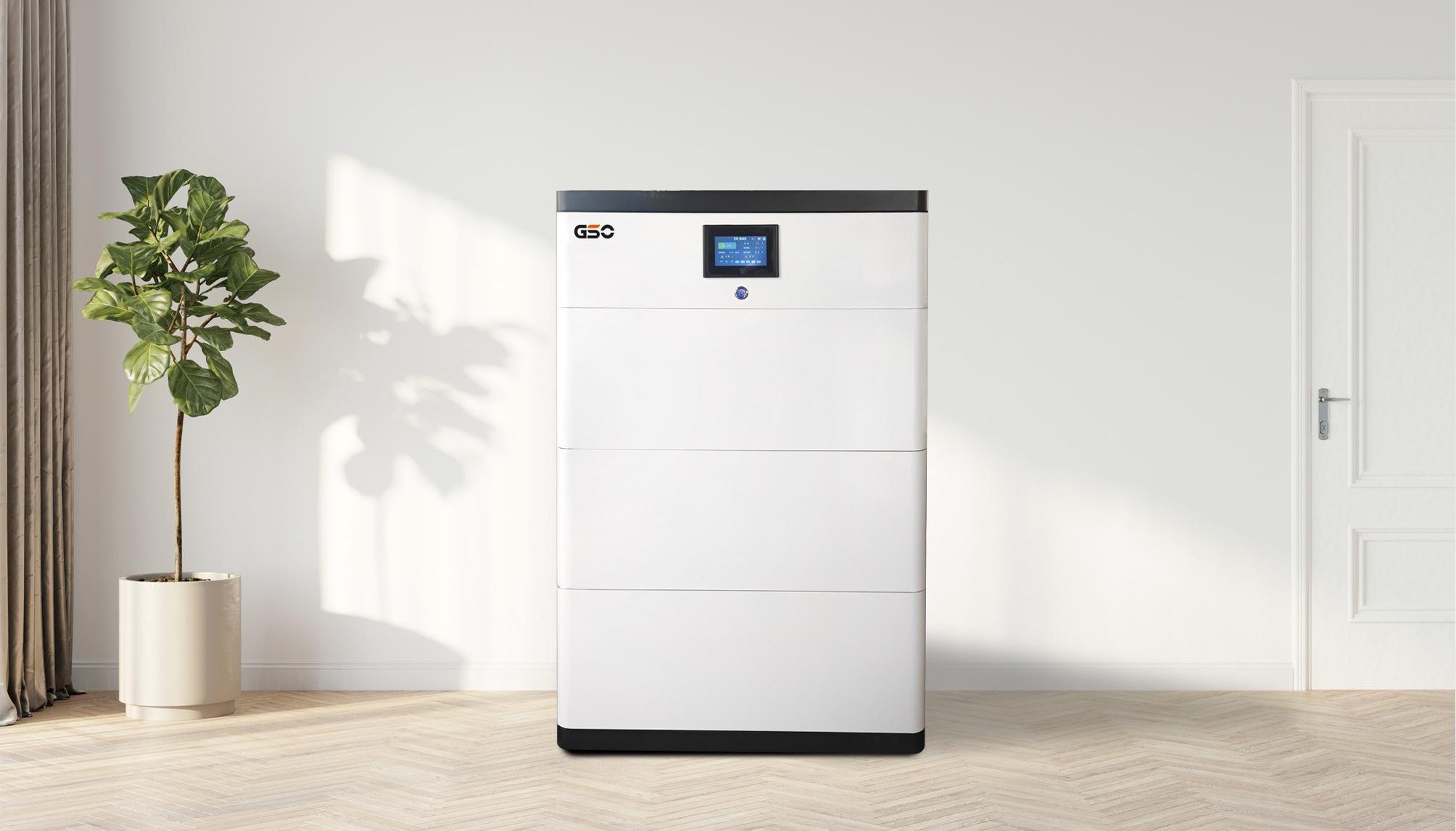

GLV1 / GLV2 series

Low-voltage stackable systems

Stackable low-voltage battery clusters that scale in modules as household or business demand grows.

9.6–38.4 kWh per cluster
Modular
Stackable

Module energy: 4.8 / 9.6 kWh
Cluster energy: 9.6 / 14.4 / 19.2 / 28.8 / 38.4 kWh
Format: Vertical stacked modules
Applications: Residential and small commercial storage

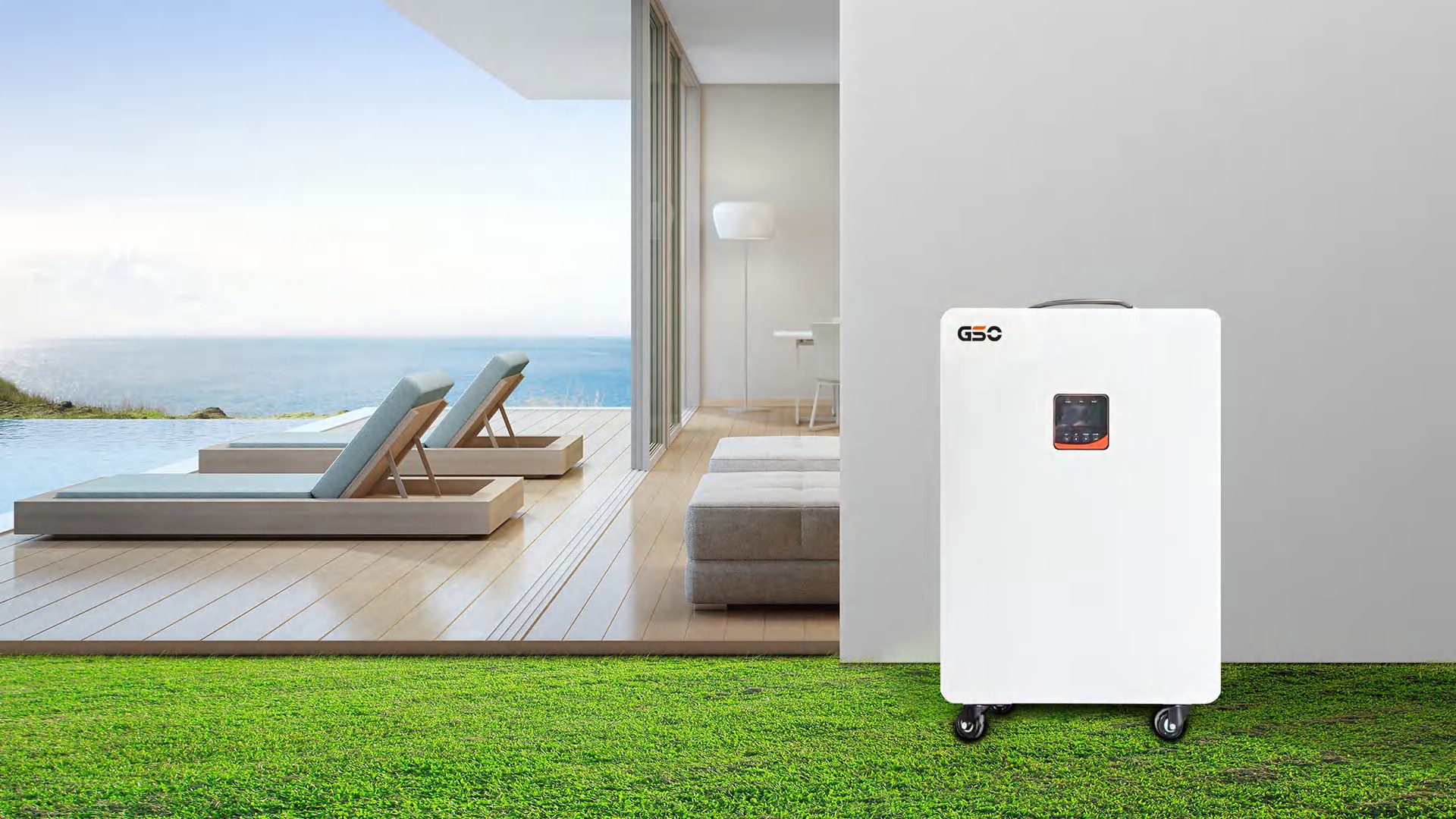

GSL series / 3.5 kW

Wheeled solar-storage all-in-one

Mobile all-in-one unit combining inverter, MPPT charging and battery in a single wheeled enclosure.

3.5 kW output
5.5 kW PV input
48 / 51.2 V

Model: GSL48-3.5K-5KWH
Rated output: 3.5 kW
PV input: 5.5 kW
Battery voltage: 48 / 51.2 V
Format: Wheeled all-in-one cabinet

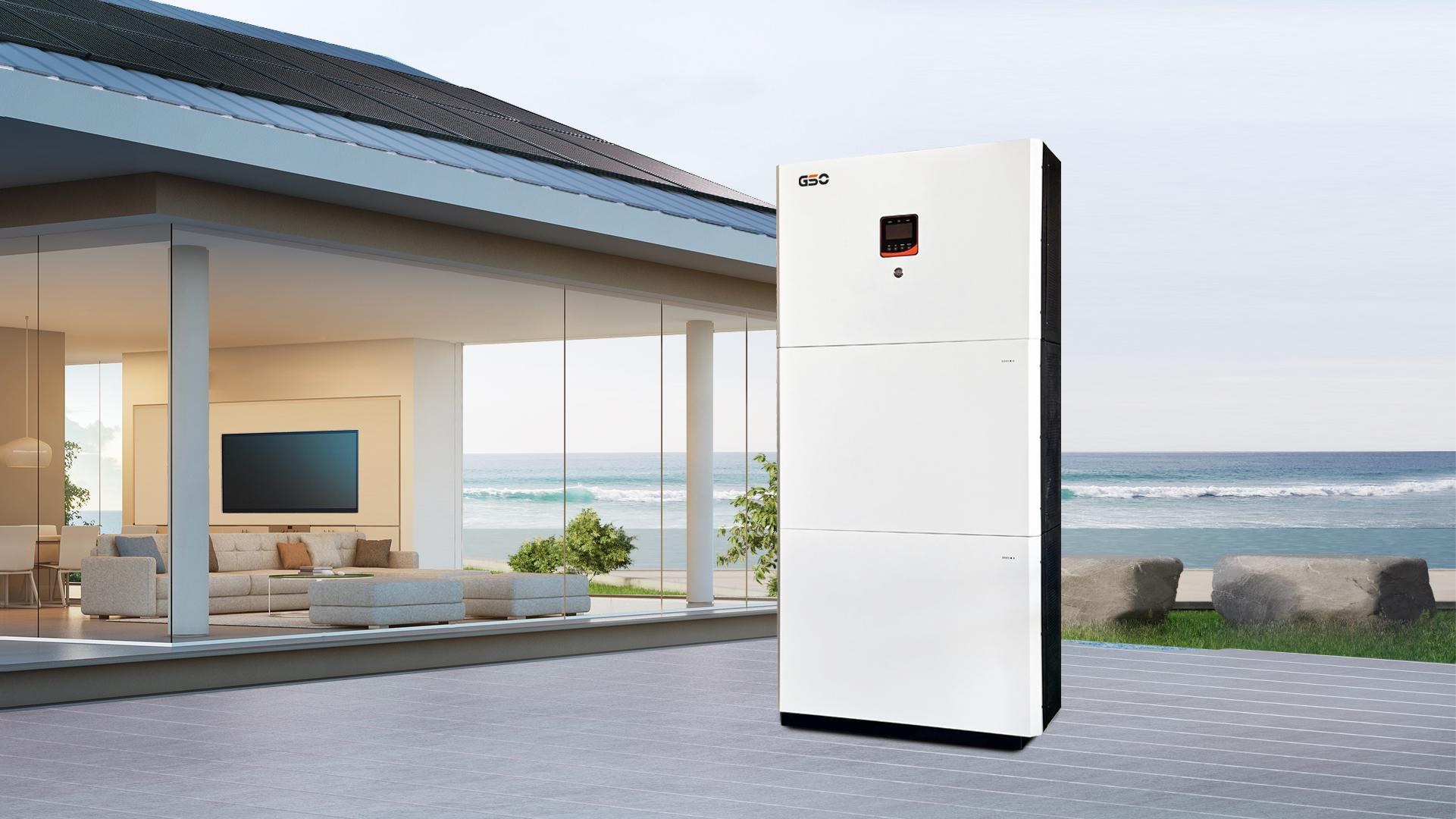

GSL stackable series

Stackable solar-storage all-in-one

Hybrid inverter plus stackable battery modules for homes and small businesses, expandable up to 30 kWh.

5.5 / 10 kW output
10–30 kWh
Modular

Models: GSL48-5.5K / GSL48-10K with 10, 20 or 30 kWh
Rated output: 5.5 kW or 10 kW
Battery energy: 10 / 20 / 30 kWh
Format: Stackable modules on a shared base

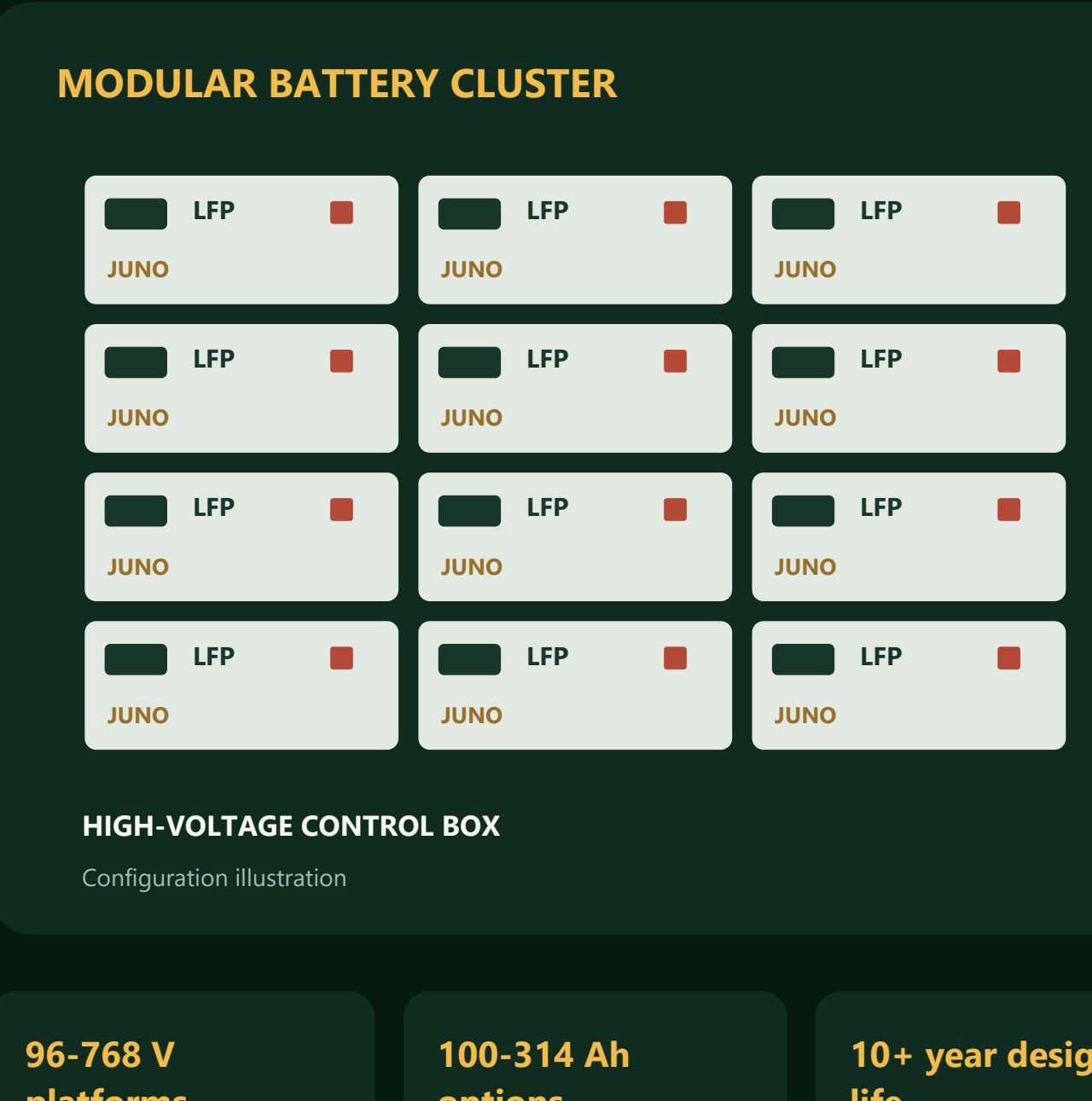

GBP-H2 series

High-voltage battery-cluster systems

High-voltage battery packs configured into clusters for commercial and industrial storage installations.

9.6–12 kWh packs
Cluster platforms
HV

Pack energy: 9.6 / 10.7 / 12 kWh
Configuration: Series packs forming high-voltage clusters
Applications: C&I storage, peak shaving, backup

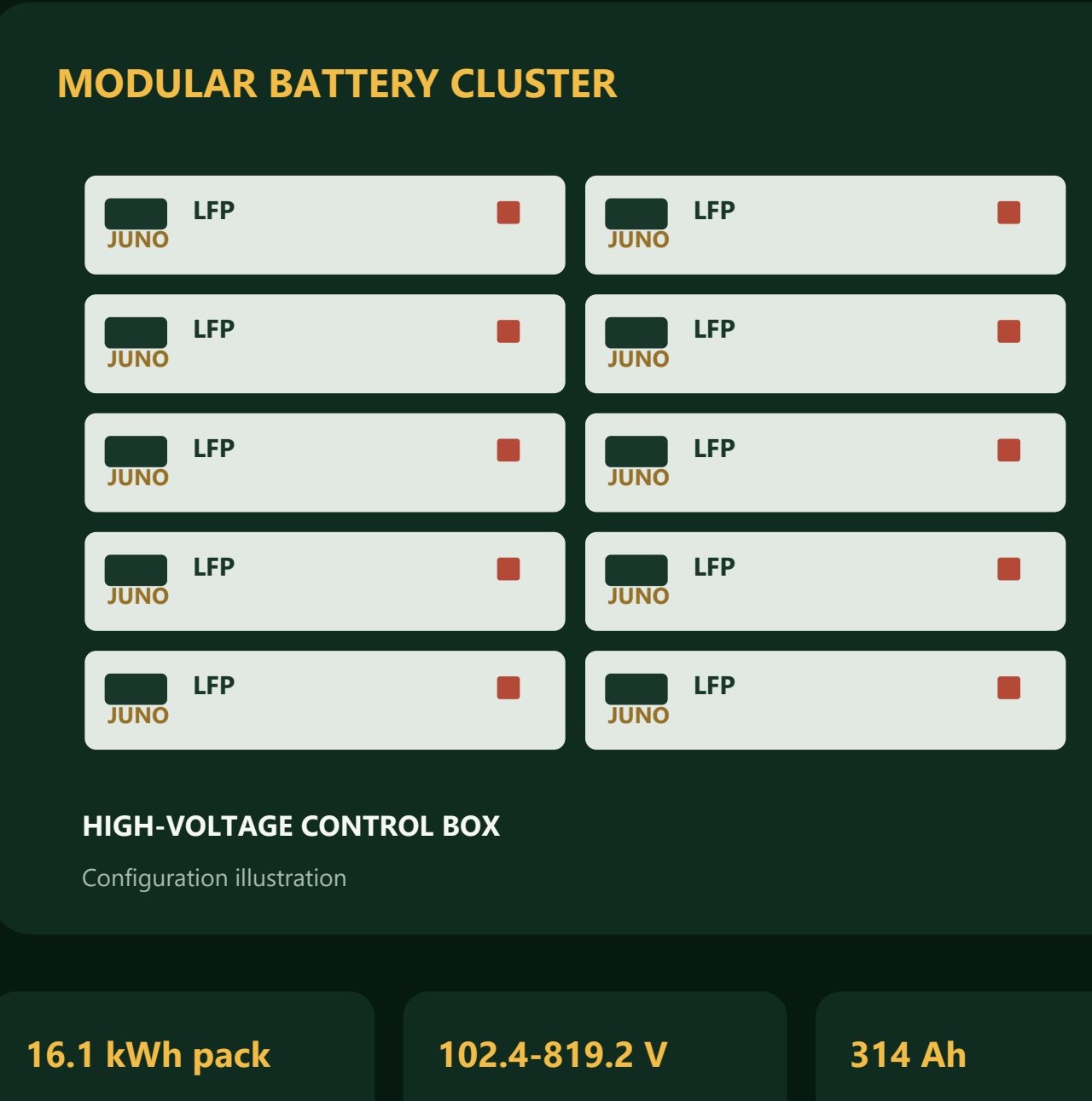

GBP-PC series

Modular battery-cluster systems

314 Ah cell modules assembled into cluster racks for larger commercial and grid-support systems.

314 Ah cells
Rack clusters
C&I / grid

Cells: 51.2 V / 314 Ah LFP modules
Configuration: Multiple cluster voltage platforms
Applications: Commercial, industrial and grid-support storage

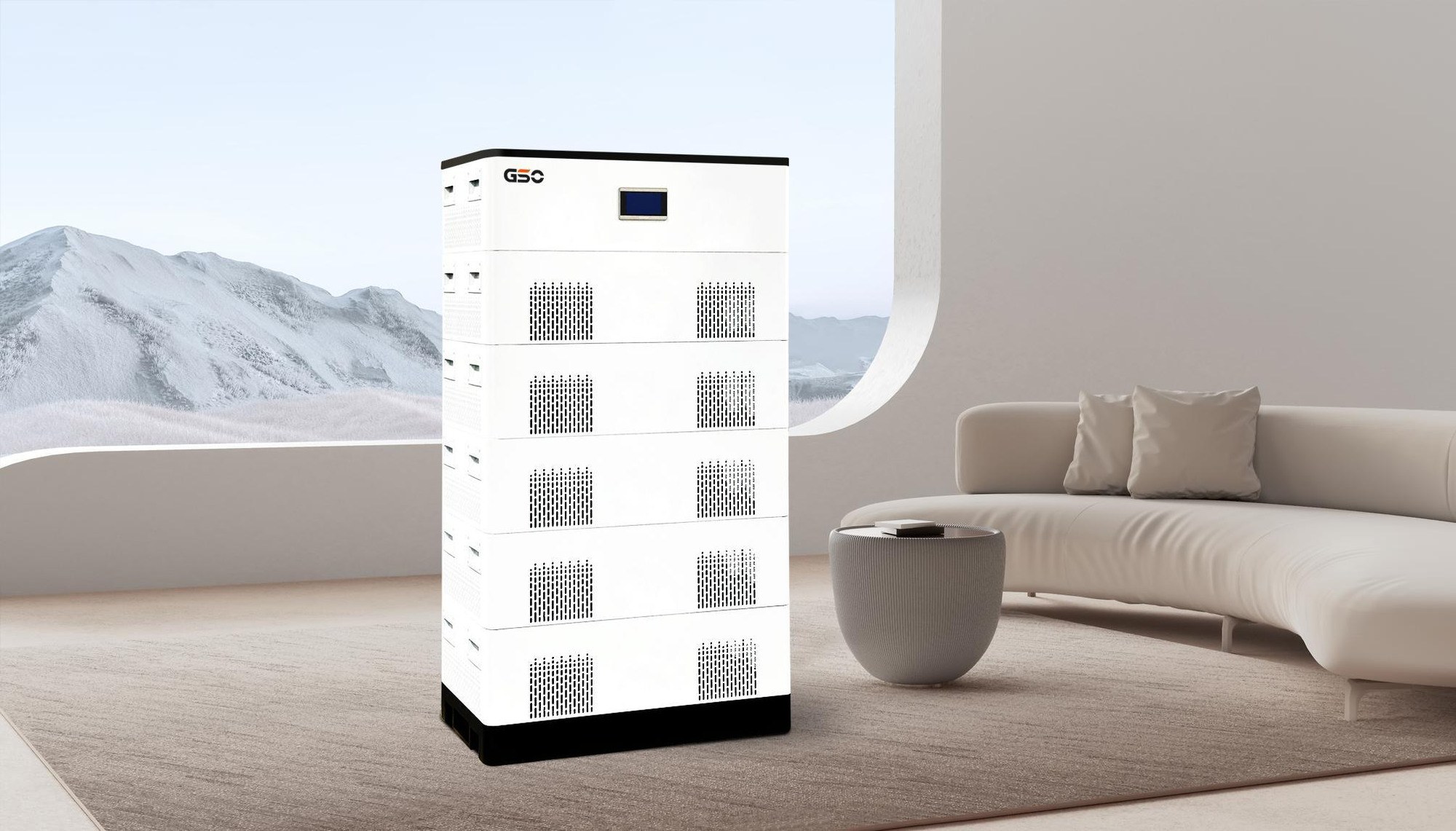

GHV2-PC series

High-voltage stackable systems

High-voltage stackable storage systems designed for long service life in commercial installations.

6,000+ cycles
High voltage
Stackable

Cycle life: 6,000+ system cycles
Configuration: Stackable high-voltage modules
Applications: Commercial storage and self-consumption

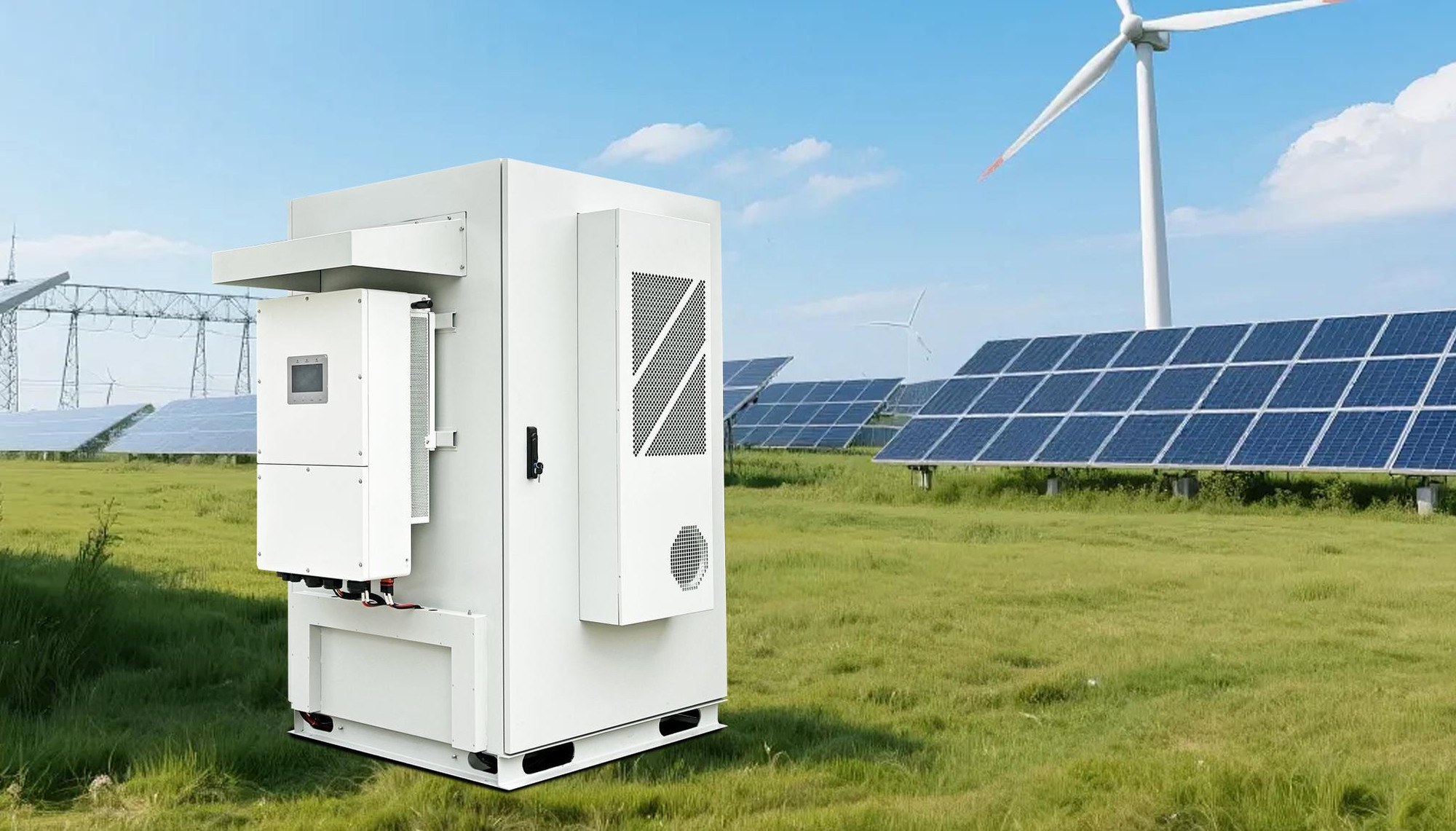

GSS-PC series

Outdoor battery cabinets

Outdoor-rated cabinets with 314 Ah LFP packs for commercial and industrial energy storage.

64.3–241 kWh
IP54 enclosure
314 Ah LFP

Energy range: 64.3 – 241 kWh
Pack rating: 48–56.8 V / 16 kWh per pack
Ingress protection: IP54 cabinet; key components IP65
Applications: Industrial parks, commercial sites

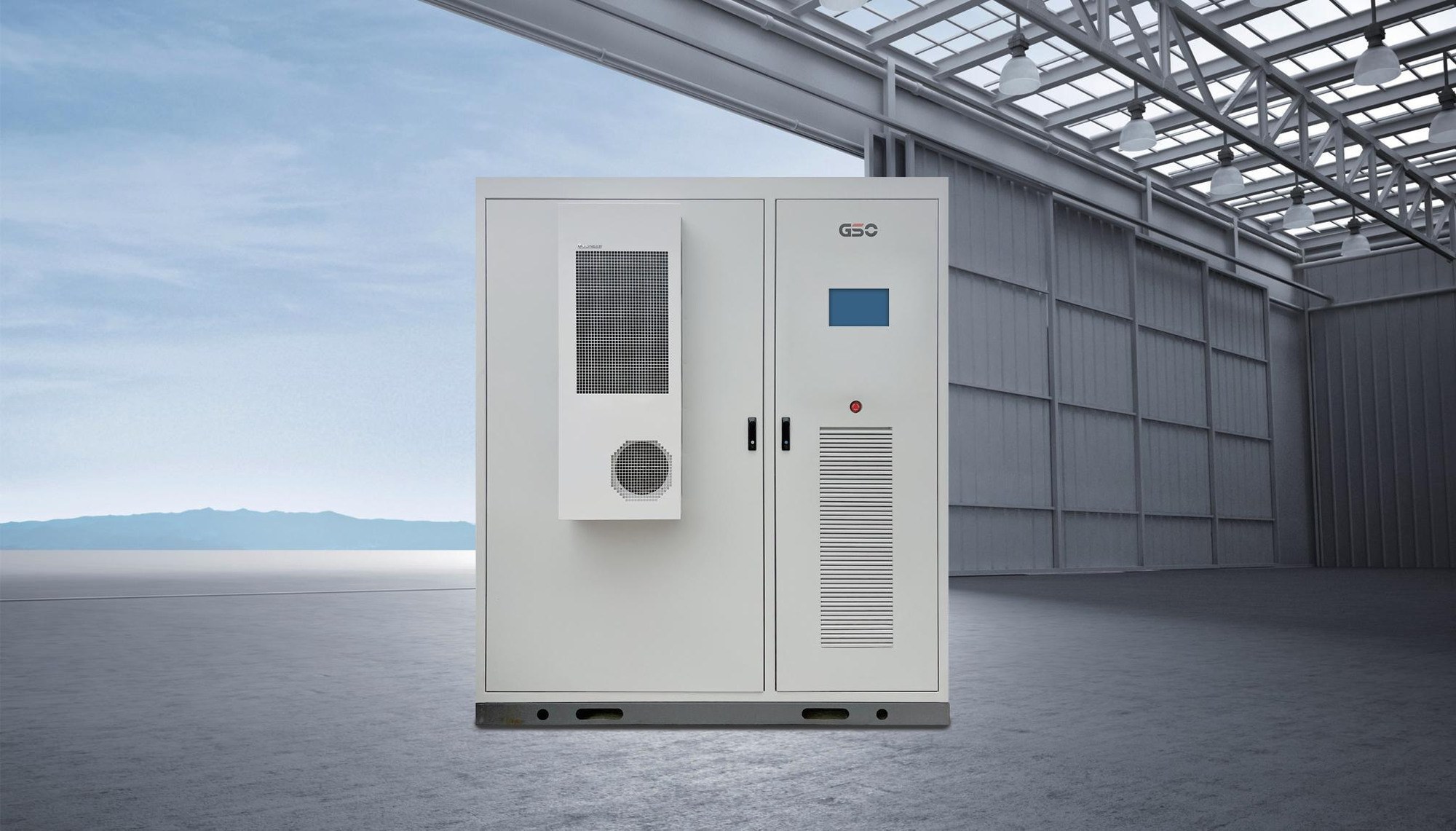

Grid-tied outdoor ESS

Air-cooled grid-tied storage systems

Integrated air-cooled outdoor storage systems combining PCS and batteries for grid-connected commercial use.

50 / 100 kW
108 / 201 kWh
≥98% efficiency

Rated / max. output: 50 / 55 kW and 100 / 110 kW
Energy capacity: 108 kWh and 201 kWh
Converter efficiency: ≥ 98%
Ingress protection: IP54; key components IP65

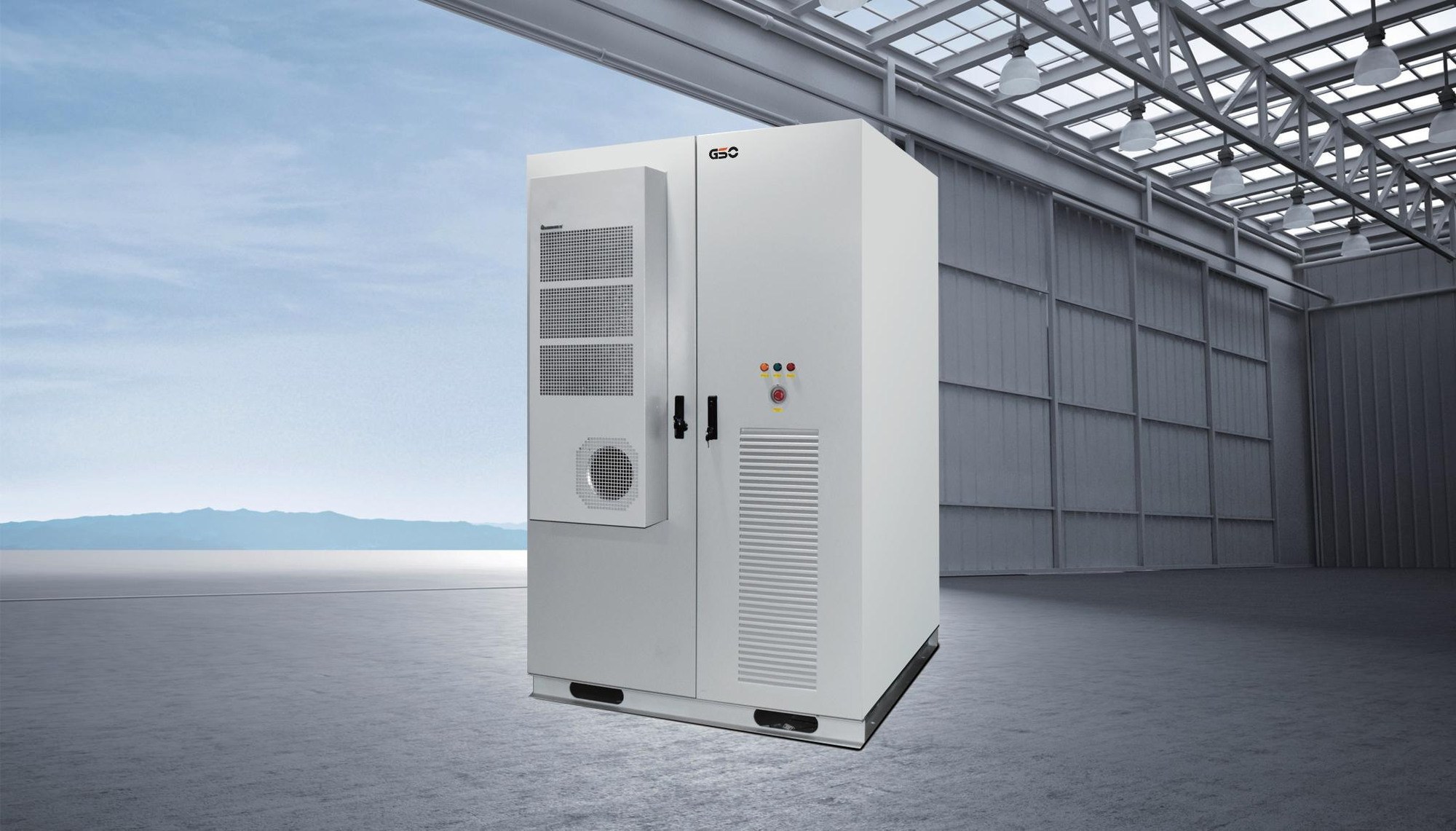

On-grid / off-grid ESS

Air-cooled hybrid storage systems

Air-cooled storage systems that operate grid-tied or islanded, with sub-20 ms transition and PV input.

50–125 kW
108–255 kWh
<20 ms transition

Grid-tied rated power: 50 / 80 / 105 / 125 kW
Maximum output: 55 – 138 kW
Off-grid output: 50 – 125 kW
Energy capacity: 108 / 170 / 215 / 230 / 255 kWh
Max. PV input: 50 – 100 kW
Transition time: < 20 ms

Specifications are taken from the JUNO POWER photovoltaic (October 2025) and energy storage (September 2025) catalogues and may be updated without notice. Configurations, voltages and capacities can be tailored to project requirements — contact us for a detailed datasheet.
